Stainless Steel 304/304L/304H Pipe Fittings

  • Home
  • Stainless Steel 304/304L/304H Pipe Fittings


Stainless Steel 304/304L/304H Pipe Fittings Specifications

Specifications ASTM A403 / ASME SA403
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

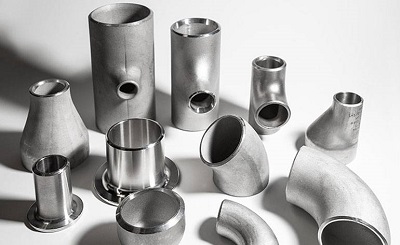

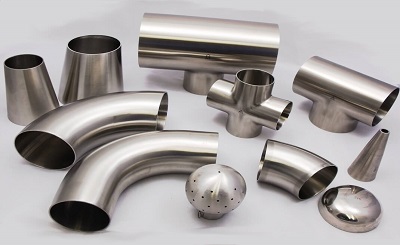

Types of Stainless Steel 304/304L/304H Pipe Fittings

Product Image

Stainless Steel 304/304L/304H Pipe Bend

Product Image

Stainless Steel 304/304L/304H Stub End

Product Image

Stainless Steel 304/304L/304H Buttweld Cap

Product Image

Stainless Steel 304/304L/304H Reducers

Product Image

Stainless Steel 304/304L/304H Cross Fittings

Product Image

Stainless Steel 304/304L/304H Buttweld Tee

Stainless Steel 304/304L/304H Pipe Fittings Dimensions Chart

Normal Pipe Size For (NPS) For ANSI/ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow B16.9 Buttweld Equal Tee Buttweld 90 Deg Elbows Buttweld 45 Deg Elbows B16.9 Buttweld Equal Tee Buttweld 90 Degree Elbow Buttweld 45 Degree Elbow ASME B16.9 Buttweld Equal Tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91

Normal Pipe Size For (NPS) For ANSI/ ASME B16.9 10S Schedule 40S Schedule 80S Schedule
Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee Buttweld Con Pipe Reducer Buttweld Ecc Pipe Reducer Buttweld Unequal And Reducing Tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

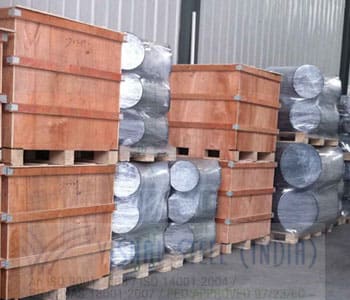

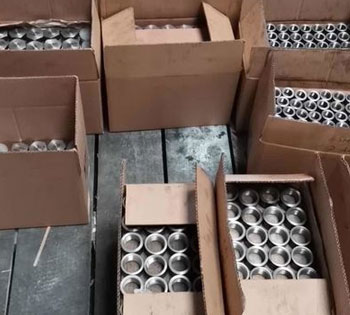

Packing Of Stainless Steel 304/304L/304H Pipe Fittings

  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates
  • Boxes and Crates
